ZJQ submersible sand pump is equipment of motor and pump use same
shaft submerge together to medium and work.Special wear-resistant
material is the company for domestic special industrial and mining
research and development of high-chromium alloy over-flow components
(material chrome chrome 27, chrome 28, chrome 30, etc.),Wear service
life can reach more than 10 times the ordinary sand pump.Model by
diameter is divided into
40、50、65、80、100、150、200、250、300、350、400.
Product features
Capacity:5~2000m3/h
Head:15~95m,
Max.pass solid:96mm.
1.Power supply for the 50Hz, 380V three-phase AC power supply.
2.The maximum temperature of the medium shall not be higher than 40 ℃, the media does not contain flammable and explosive gas.
3.The maximum weight of solid particles in the media: 45% of the ash, while sand, slag, pulp is 60%.
4.Unit
maximum diving depth is generally not more than 20 meters, after a
special modification up to 60 meters, the minimum diving depth of not
less than 1 meter.
5.Unit in the medium to work as vertical is well,
running for continuous operation.

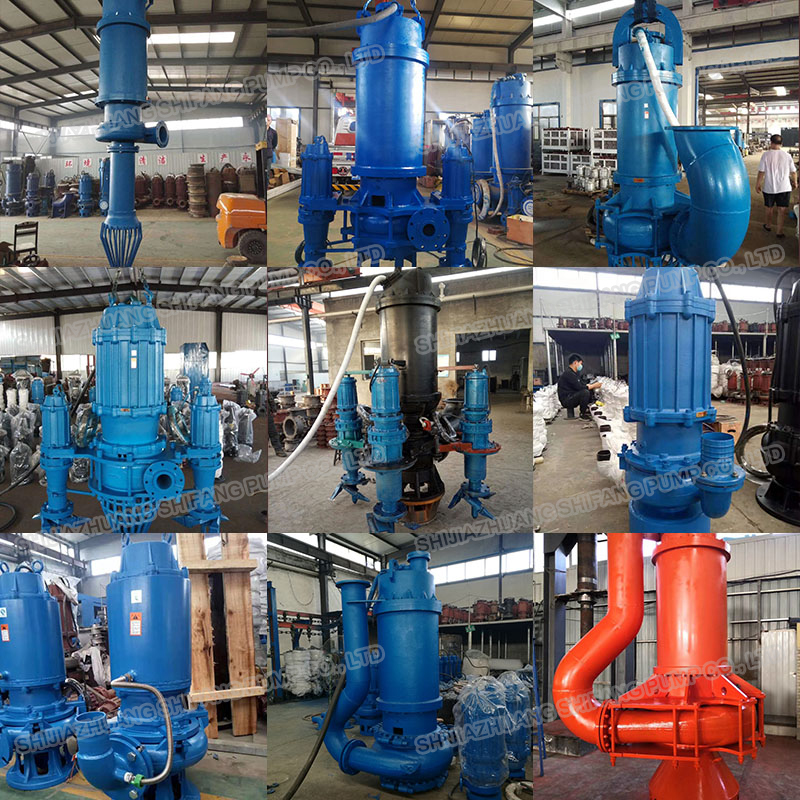

Workshop
Application sites
Submersible sand pump usage:
Including but not limited to the following:
1、River, small river, lake, sea, reservoir pumping sand.
2、River, lake, reservoir, port dredging sediment.
3、Pumping sand beneficiation: pumping sand election iron, pumping sand gold, sand selection rare solid.
4、Sewage treatment plant sedimentation tank cleaning.
5、Municipal pipelines, rainwater pumping stations, hydropower station sediment cleaning.
6、Construction (bridge construction wells, etc.) row of sediment, mud.
7、Steel plant blast furnace slag, slag, pumping iron oxide delivery.
8、Concentrator tailings, slag, pulp transport.
9、Coal cinder, slime, coal slurry cleaning.
10、Power plant fly ash, slime, coal slurry transportation.
11、Learn a variety of King Kong sand, quartz sand, steel slag solid particles.
12、Tile factory pumping powder.
13、Coastal areas.
14、Delivery slurry material which containing various impurities .
15、Transport other medium containing larger solid particles.
ZJQ Performance Parameter |
No. | Model | Outlet diam. mm | Capacity m3/h | Head | Power | Speed r/min | Max.pass solid mm | Weight |
m | kW | kg |
1 | ZJQ10-10-3 | 40 | 10 | 10 | 3 | 1460 | 8 | 65 |
2 | ZJQ15-8-3 | 50 | 15 | 8 | 3 | 1460 | 10 | 65 |
3 | ZJQ10-20-4 | 40 | 15 | 22 | 4 | 1460 | 10 | 85 |
4 | ZJQ20-12-4 | 50 | 20 | 18 | 4 | 1460 | 10 | 85 |
5 | ZJQ15-15-4 | 50 | 15 | 15 | 4 | 1460 | 10 | 85 |
6 | ZJQ30-10-4 | 65 | 30 | 10 | 4 | 1460 | 10 | 85 |
7 | ZJQ20-30-5.5 | 50 | 20 | 30 | 5.5 | 1460 | 13 | 110 |
8 | ZJQ30-20-5.5 | 65 | 30 | 20 | 5.5 | 1460 | 13 | 112 |
9 | ZJQ45-15-5.5 | 80 | 45 | 15 | 5.5 | 1460 | 13 | 115 |
10 | ZJQ50-10-5.5 | 80 | 50 | 10 | 5.5 | 1460 | 13 | 120 |
11 | ZJQ30-30-7.5 | 65 | 30 | 30 | 7.5 | 1460 | 13 | 135 |
12 | ZJQ45-20-7.5 | 80 | 32 | 20 | 7.5 | 1460 | 13 | 138 |
13 | ZJQ50-16-7.5 | 80 | 45 | 15 | 7.5 | 1460 | 13 | 135 |
14 | ZJQ80-10-7.5 | 100 | 100 | 10 | 7.5 | 1460 | 21 | 135 |
15 | ZJQ40-25-11 | 80 | 40 | 25 | 11 | 1480 | 13 | 240 |
16 | ZJQ50-26-11 | 80 | 50 | 26 | 11 | 1480 | 13 | 240 |
17 | ZJQ70-20-11 | 100 | 70 | 20 | 11 | 1480 | 13 | 240 |
18 | ZJQ100-16-11 | 100 | 100 | 18 | 11 | 1480 | 21 | 240 |
19 | ZJQ35-35-15 | 80 | 25 | 40 | 15 | 1480 | 13 | 260 |
20 | ZJQ50-30-15 | 80 | 50 | 26 | 15 | 1480 | 13 | 260 |
21 | ZJQ70-25-15 | 100 | 70 | 24 | 15 | 1480 | 13 | 260 |
22 | ZJQ100-20-15 | 100 | 100 | 18 | 15 | 1480 | 21 | 270 |
23 | ZJQ120-15-15 | 100 | 150 | 15 | 15 | 1480 | 21 | 270 |
24 | ZJQ150-15-18.5 | 150 | 150 | 18 | 18.5 | 1480 | 32 | 550 |
25 | ZJQ180-12-18.5 | 150 | 200 | 12 | 18.5 | 1480 | 45 | 550 |
26 | ZJQ150-22-22 | 150 | 150 | 22 | 22 | 1480 | 32 | 600 |
27 | ZJQ250-15-22 | 150 | 200 | 15 | 22 | 1480 | 45 | 600 |
28 | ZJQ60-46-30 | 100 | 60 | 46 | 30 | 1480 | 14 | 550 |
29 | ZJQ70-38-30 | 100 | 70 | 38 | 30 | 1480 | 21 | 710 |
30 | ZJQ100-35-30 | 100 | 100 | 35 | 30 | 1480 | 21 | 710 |
31 | ZJQ120-30-30 | 150 | 120 | 30 | 30 | 1480 | 21 | 710 |
32 | ZJQ200-25-30 | 150 | 200 | 20 | 30 | 1480 | 21 | 710 |
33 | ZJQ250-20-30 | 200 | 300 | 15 | 30 | 1480 | 28 | 700 |
34 | ZJQ100-40-37 | 100 | 100 | 40 | 37 | 1480 | 21 | 850 |
35 | ZJQ250-22-37 | 200 | 250 | 22 | 37 | 1480 | 28 | 775 |
36 | ZJQ150-35-45 | 150 | 150 | 35 | 45 | 1480 | 36 | 1000 |
37 | ZJQ200-30-45 | 150 | 200 | 30 | 45 | 1480 | 36 | 1110 |
38 | ZJQ150-45-55 | 150 | 150 | 45 | 55 | 1480 | 21 | 1140 |
39 | ZJQ250-35-55 | 150 | 250 | 35 | 55 | 1480 | 36 | 1140 |
40 | ZJQ400-20-55 | 200 | 600 | 15 | 55 | 980 | 46 | 1220 |
41 | ZJQ250-45-75 | 150 | 200 | 45 | 75 | 1480 | 21 | 1540 |
42 | ZJQ200-50-75 | 150 | 200 | 50 | 75 | 1480 | 14 | 1550 |
43 | ZJQ300-35-75 | 200 | 300 | 35 | 75 | 1480 | 28 | 1550 |
44 | ZJQ400-25-75 | 200 | 400 | 25 | 75 | 1480 | 25 | 1550 |
45 | ZJQ500-20-75 | 200 | 500 | 20 | 75 | 980 | 25 | 1550 |
46 | ZJQ200-60-90 | 150 | 200 | 60 | 90 | 1480 | 14 | 1550 |
47 | ZJQ400-40-90 | 200 | 400 | 40 | 90 | 1480 | 28 | 1550 |
48 | ZJQ500-25-90 | 200 | 500 | 25 | 90 | 980 | 25 | 1550 |
49 | ZJQ400-50-110 | 200 | 400 | 50 | 110 | 1480 | 28 | 1970 |
50 | ZJQ600-30-110 | 200 | 600 | 30 | 110 | 980 | 28 | 1970 |
51 | ZJQ780-26-110 | 300 | 780 | 26 | 110 | 980 | 50 | 1970 |
52 | ZJQ400-60-132 | 200 | 400 | 60 | 132 | 1480 | 28 | 2000 |
53 | ZJQ500-45-132 | 200 | 500 | 45 | 132 | 980 | 28 | 2500 |
54 | ZJQ500-55-132 | 200 | 500 | 55 | 132 | 980 | 28 | 2500 |
55 | ZJQ800-35-132 | 300 | 800 | 35 | 132 | 980 | 42 | 2700 |
56 | ZJQ1000-22-132 | 300 | 1000 | 22 | 132 | 980 | 50 | 3200 |
57 | ZJQ650-52-160 | 200 | 650 | 52 | 160 | 980 | 28 | 3300 |
58 | ZJQ780-50-185 | 300 | 780 | 50 | 185 | 980 | 38 | 3500 |
59 | ZJQ800-55-220 | 300 | 800 | 55 | 220 | 980 | 38 | 3700 |
60 | ZJQ1250-35-220 | 350 | 1250 | 35 | 220 | 740 | 45 | 4200 |
61 | ZJQ1750-30-250 | 350 | 1750 | 30 | 250 | 740 | 55 | 4500 |
62 | ZJQ1500-35-250 | 350 | 1500 | 35 | 250 | 740 | 50 | 4700 |
63 | ZJQ2000-35-315 | 400 | 2000 | 35 | 315 | 740 | 60 | 5500 |
